 Azores Networks Optical Network Terminals (ONTs)
Azores Networks delivers cutting-edge broadband solutions tailored for next-generation fiber networks. Their ONTs are designed to support XGS-PON and GPON architectures, enabling ultra-fast, reliable connectivity for residential, enterprise, and mobile backhaul applications. With a focus on open architecture and high-performance hardware, Azores ONTs are ideal for service providers seeking scalable and future-proof deployments.
As FTTX and Wi-Fi networks continue to evolve toward open architectures, Azores remains committed to delivering open, flexible solutions for every type of network. While other manufacturers may limit ONT and Wi-Fi options, Azores continues to expand its product portfolio to meet the growing demands of modern applications.
In response to ongoing supply chain challenges, Azores has secured multiple sourcing channels to support deployments ranging from a few hundred units to hundreds of thousands. With manufacturing capabilities across several countries and a diverse network of component suppliers, Azores ensures scalability and reliability at every level.
Azores’ Product Technology Services team provides comprehensive technical support and services, helping customers maximize the value of their network investments. Known for its high-quality products and software, Azores consistently delivers the performance and reliability customers expect.
Key Features
- XGS-PON & GPON Support: Compliant with ITU-T G.9807.1 and G.984 standards
- Multi-Gigabit Ethernet: Up to 10Gbps symmetrical data rates
- Layer 3 Capable: Advanced routing, VLAN, QoS, and multicast support
- Flexible Uplink Options: Tri-mode uplink via XGS-PON, 5G, or Ethernet
- Compact & Efficient: Desktop form factor with low power consumption
Featured ONT Models
|
Model
|
Decription
|
Interfaces and
Highlights
|
|
WAG-D20
|
Intel-based XGS-PON ONT for FTTH and enterprise use
|
1x 10GbE, 1x 2.5GbE, Layer 3, IEEE1588v2, Sync-E, SC/APC connector2
|
|
X3B1E1V-AX3000
|
Tri-mode ONT with dual-band Wi-Fi 6
|
Supports XGS-PON/5G/Ethernet uplink, AX3000 Wi-Fi, ideal for residential deployments
|
|
X4B2V-AX5400
|
High-performance ONT with Wi-Fi 6 AX5400
|
4x GE ports, dual-band Wi-Fi 6, XGS-PON uplink
|
|
BE-18700
|
Wi-Fi 7 ONT for ultra-connected homes
|
1x 10GE WAN, 1x 10GE LAN, Tri-band Wi-Fi 7, XGS-PON gateway
|
|
WiFi AP
|
|
|
|

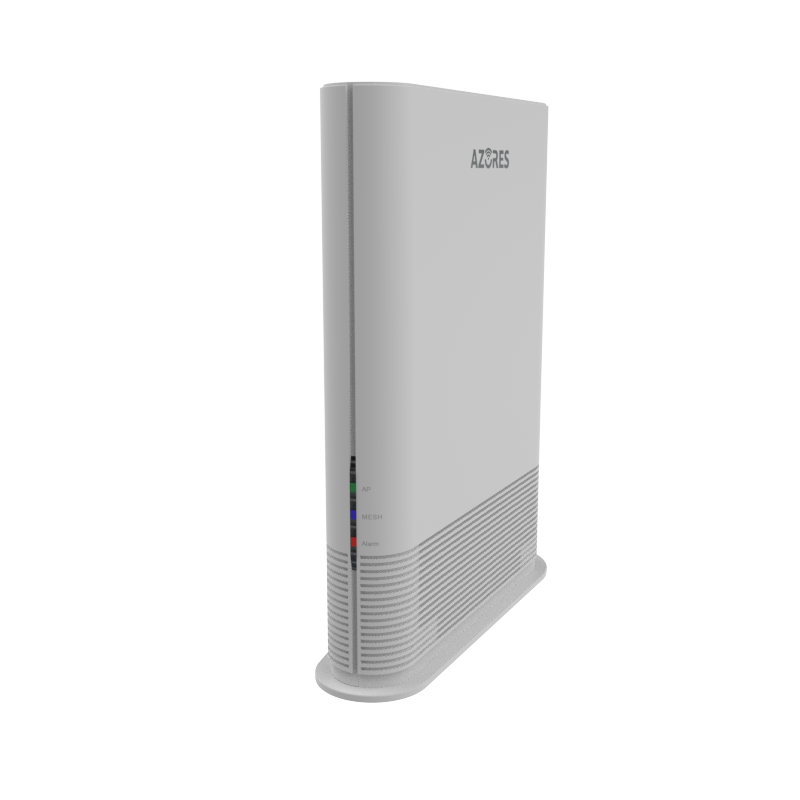

WA6-M40AP
|
AX3000 Access Point
WAN: 1x 1G WAN / LAN: 3x 1G
WiFi 6: 574Mbps / 2.4Gbps
2x2 40MHz (2.4GHz)
2x2 160MHz (5GHz)
|
|
|

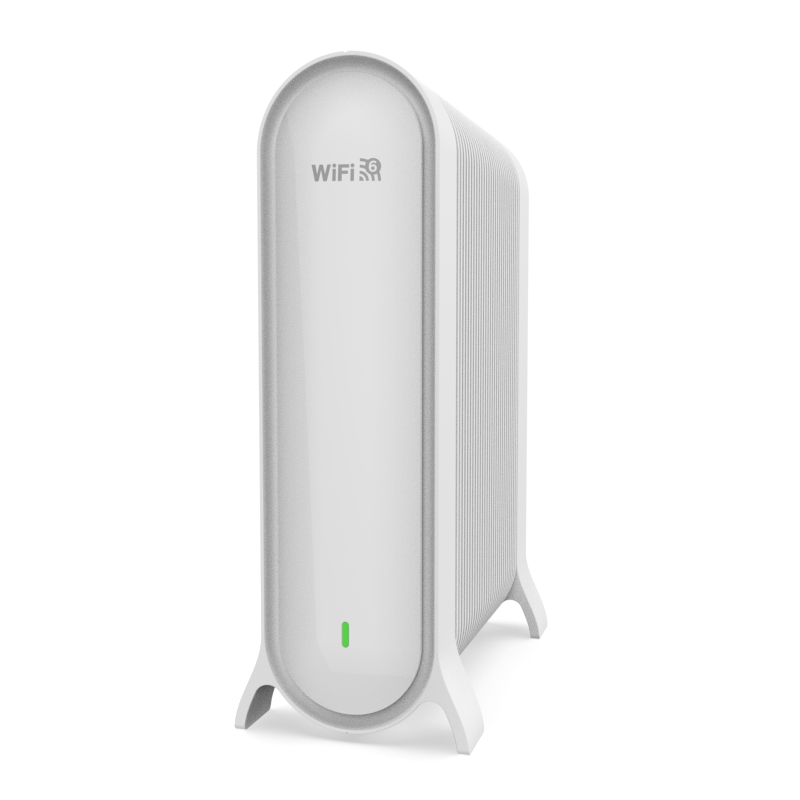

WA6-HF0T
|
AX3000 Supreme Access Point
WAN: 1x 2.5G / LAN: 3x 1G
WiFi 6: 574Mbps / 2.4Gbps
2x2 40MHz Wi-Fi 6 (2.4GHz)
2x2 160MHz Wi-Fi 6 (5GHz)
2x2 160MHz Wi-Fi 6E (6GHz)
|
|
|

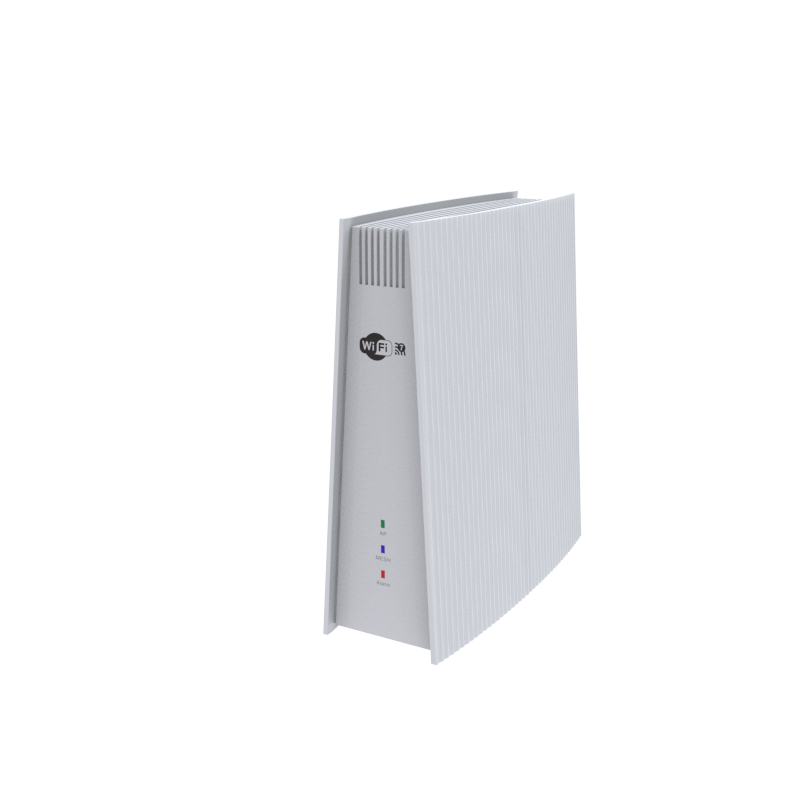

WA7-H40AP
|
BE3600 Access Point
WAN: 1x 2.5G / LAN 1x 2.5G + 2x 1G
WiFi6: 720Mbps / 2880Mbps
2x2 40MHz Wi-Fi 7 (2.4GHz)
2x2 160MHz Wi-Fi 7 (5GHz)
|
|
|

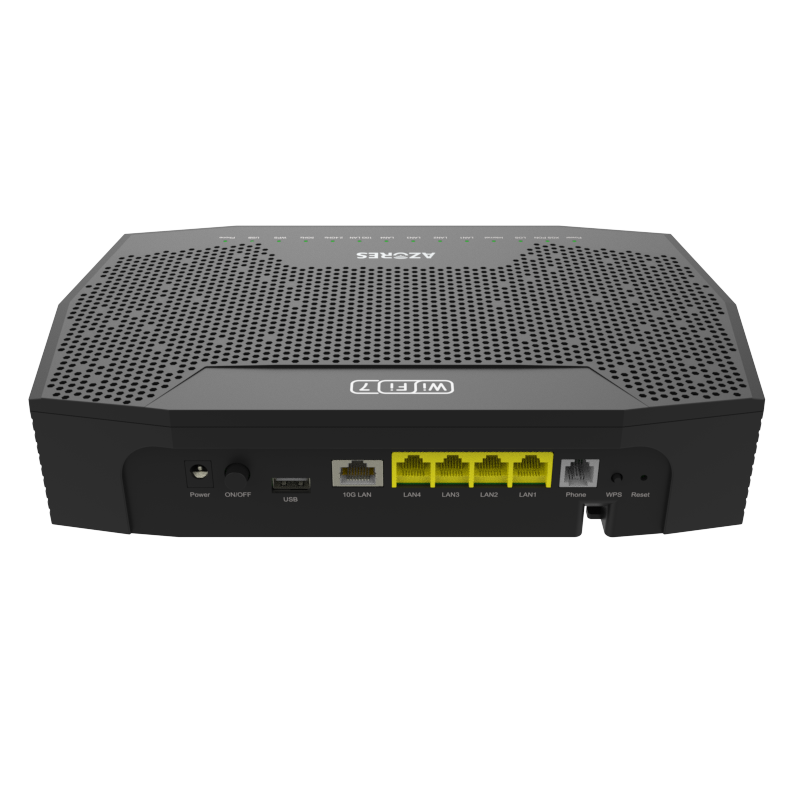

WA7-N40AP
|
BE7200 Access Point
WAN: 1x 2.5G / LAN 1x 2.5G + 3x 1G
WiFi7: 1440Mbps / 5760Mbps
4x4 40MHz Wi-Fi 7 (2.4GHz)
4x4 160MHz Wi-Fi 7 (5GHz)
|
|
|
WA7-H51AP
|
BE18000 Access Point
WAN: 1x 10G / LAN 1x 10G + 2x 1G
WiFi7: 688 Mbps / 5,764 Mbps / 11,529 Mbps
2x2 40MHz Wi-Fi 7 (2.4GHz)
4x4 160MHz Wi-Fi 7 (5GHz)
4x4 320MHz Wi-Fi 7 (6GHz)
|
|
|

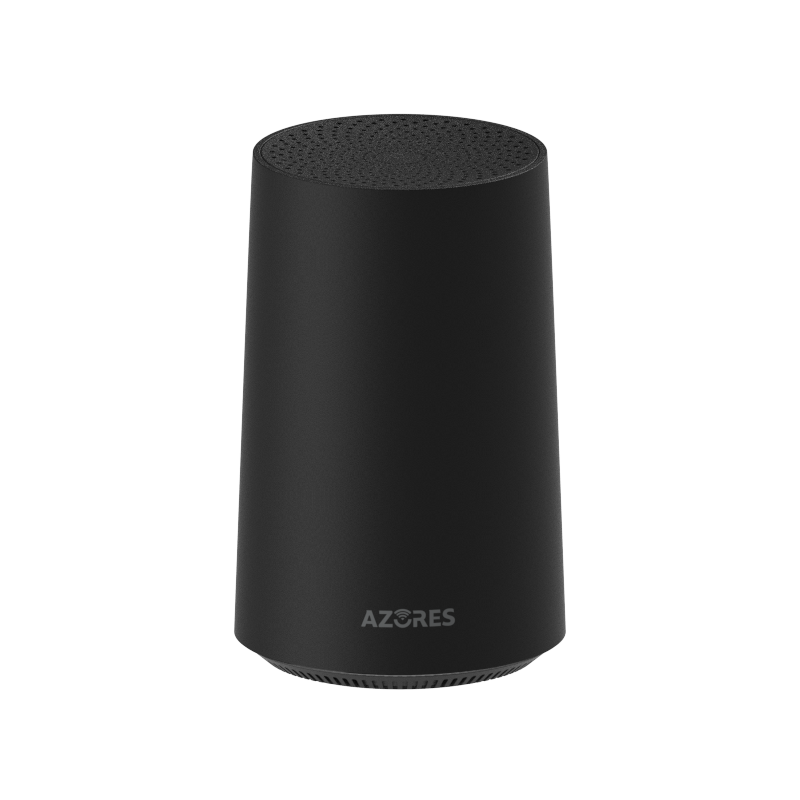

WA6-E20
|
|
|
|
WA6-BF0
|
AX1800 Access Point
LAN: 4x 1G
WiFi 6: 574Mbps / 2.4Gbps
2x2 40MHz Wi-Fi 6 (2.4GHz)
2x2 80MHz Wi-Fi 6 (5GHz)
|
|
|
ONT
|
|
|
|
WAG-M41W6
|
GPON ONT with AX3000 WiFi6
LAN: 1x 2.5G + 4x1G
WiFi 6: 574Mbps / 2.4Gbps
2x2 40MHz Wi-Fi 6 (2.4GHz)
2x2 160MHz Wi-Fi 6 (5GHz)
|
|
|

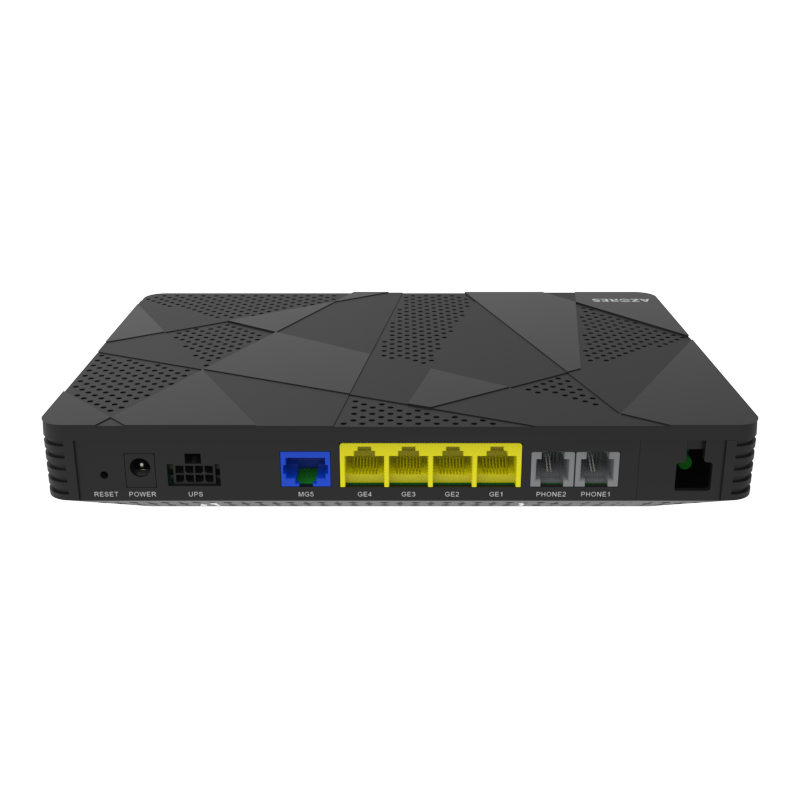

WAG-052C
|
XGSPON ONT
LAN: 1x 10G + 4x1G
|
|
|

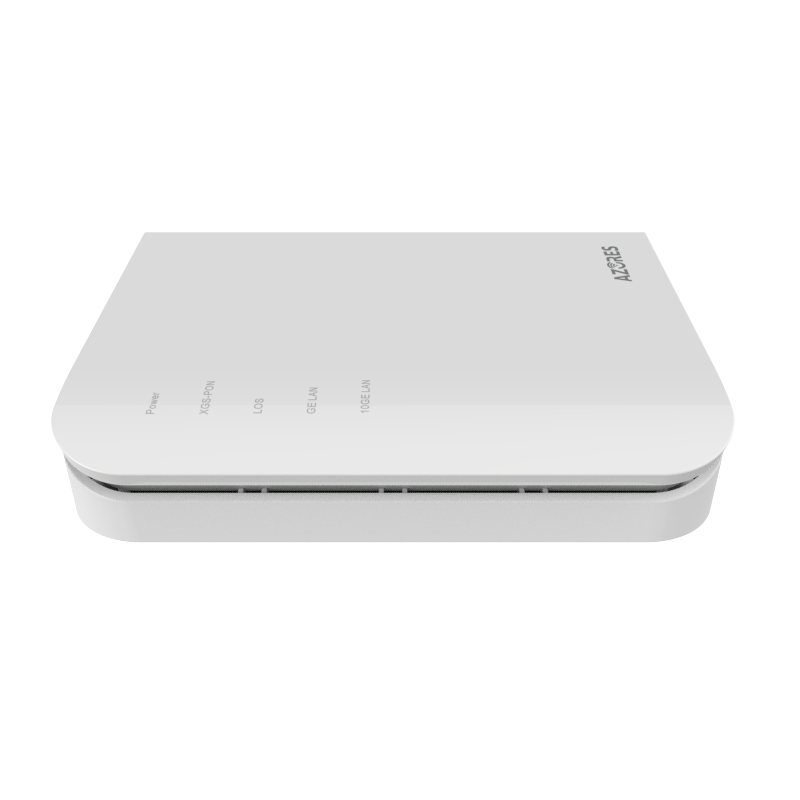

WAG-D20
|
XGSPON L2 Bridge ONT
LAN: 1x 10G + 2x 2.5G
|
|
|

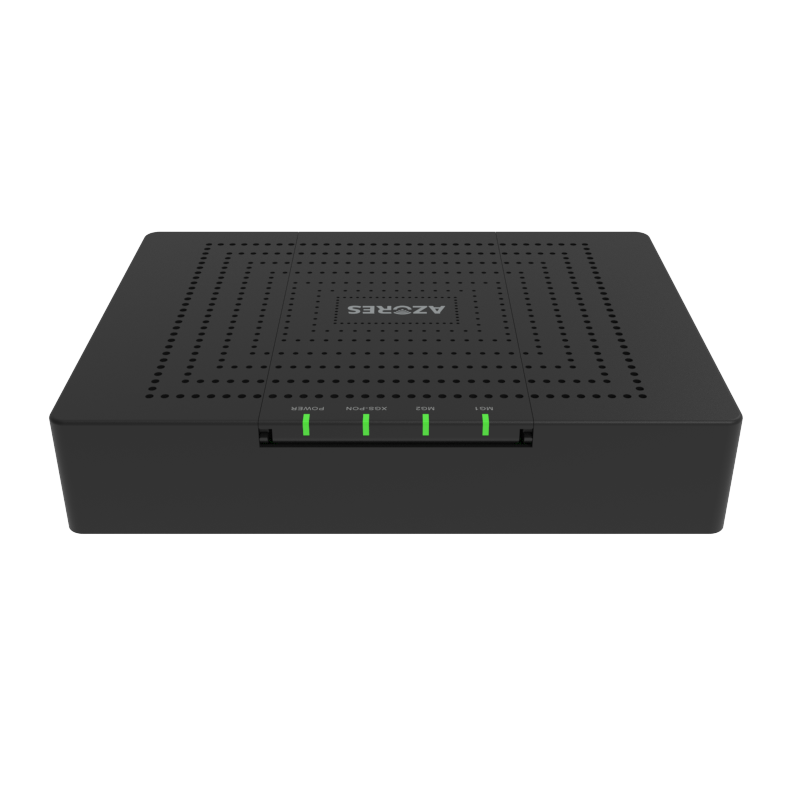

WAG-D20P
|
XGSPON L2 Bridge ONT
LAN: 1x 10G + 2x 2.5G
PoE++ (60W)
E-Temp -40 to 60C
|
|
|
WAC-150
|
XGSPON /10G EPON L2 Bridge ONT
LAN: 1x 10G (SFP+) + 4x 1G
PoE++ (60W)
|
|
|

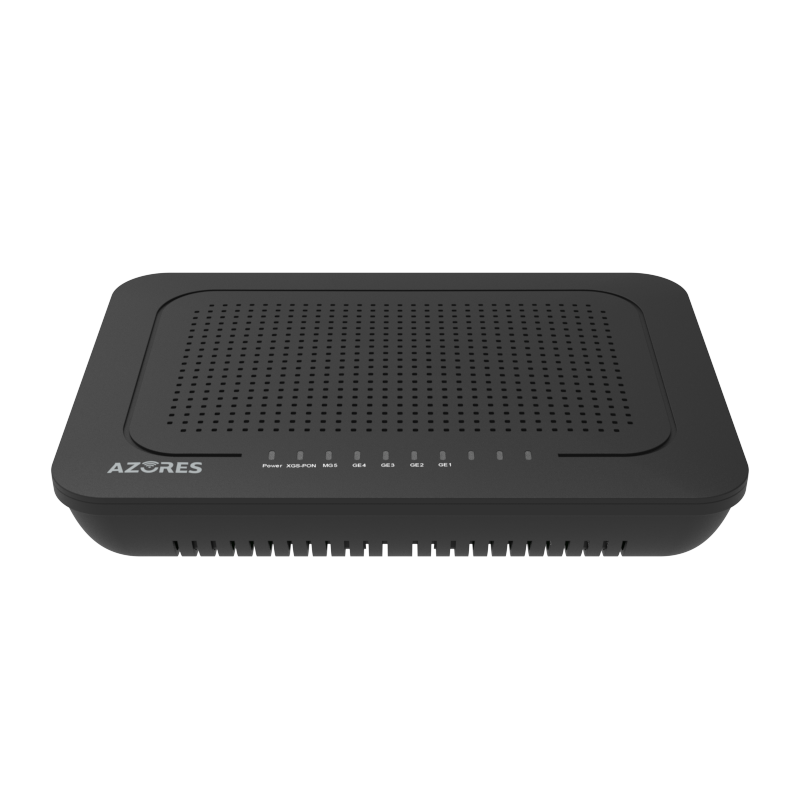

WAC-150P
|
XGSPON /10G EPON L2 Bridge ONT
LAN: 1x 10G (SFP+) + 4x 1G
PoE++ (60W)
|
|
|
WAC-150A
|
XGSPON /10G EPON L2 Bridge ONT
LAN: 1x 10G (SFP+ or SFF SC/APC) + 4x 1G
|
|
|

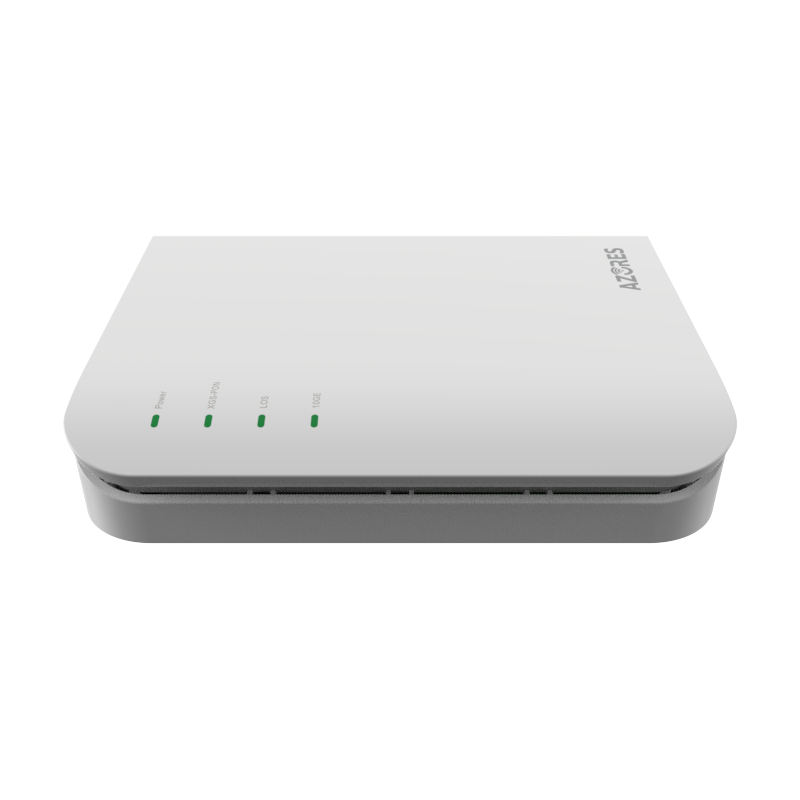

WAG-D10F
|
|
|
|

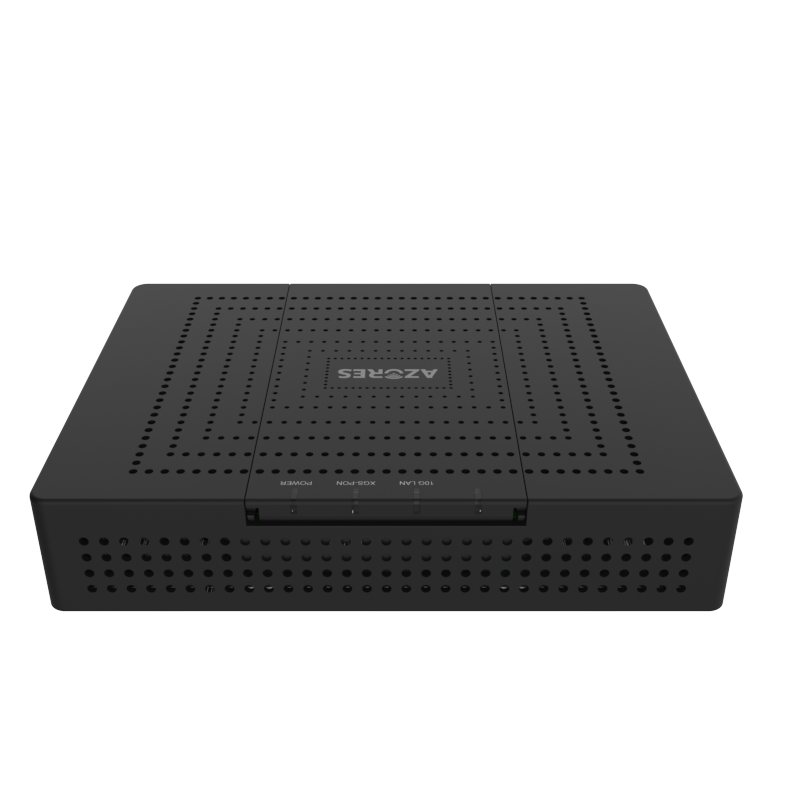

WAG-D10IPD
|
XGSPON L2 Bridge ONT
LAN: 1x 10G
Remote powered (802.3af PD)
E-Temp -20 to 60C
|
|
|

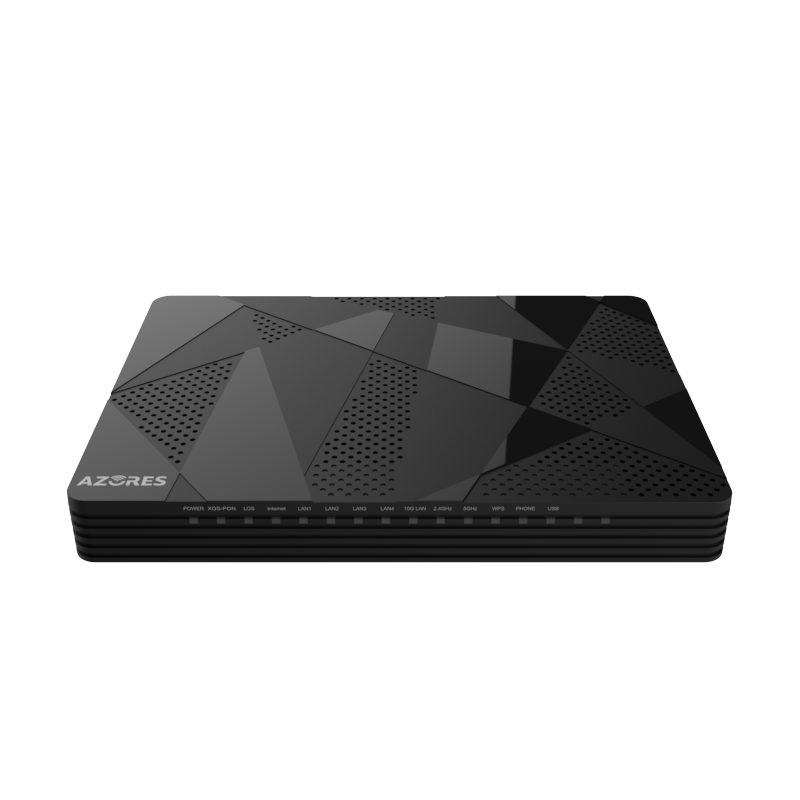

WAG-M51W6
|
XGSPON ONT with AX3000 WiFi6
LAN: 1x 10G + 4x 1G
WiFi 6: 574Mbps / 2.4Gbps
2x2 40MHz Wi-Fi 6 (2.4GHz)
2x2 160MHz Wi-Fi 6 (5GHz)
|
|
|

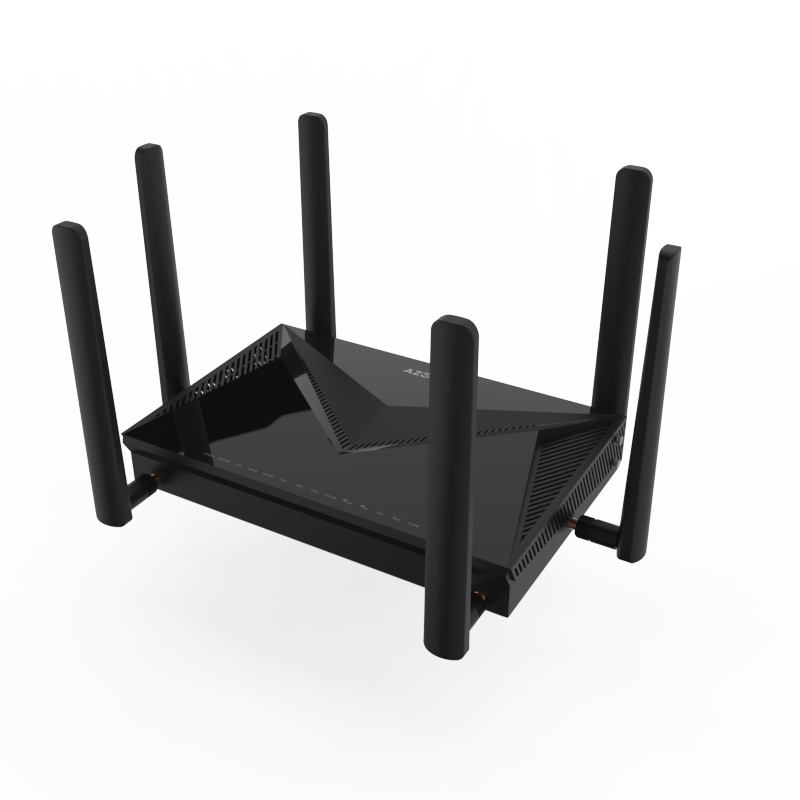

WAG-F51W6
|
XGSPON ONT with AX3000 WiFi6
LAN: 1x 10G + 4x 1G
WiFi 6: 574Mbps / 2.4Gbps
2x2 40MHz Wi-Fi 6 (2.4GHz)
2x2 160MHz Wi-Fi 6 (5GHz)
1x POTS/FXS
|
|
|

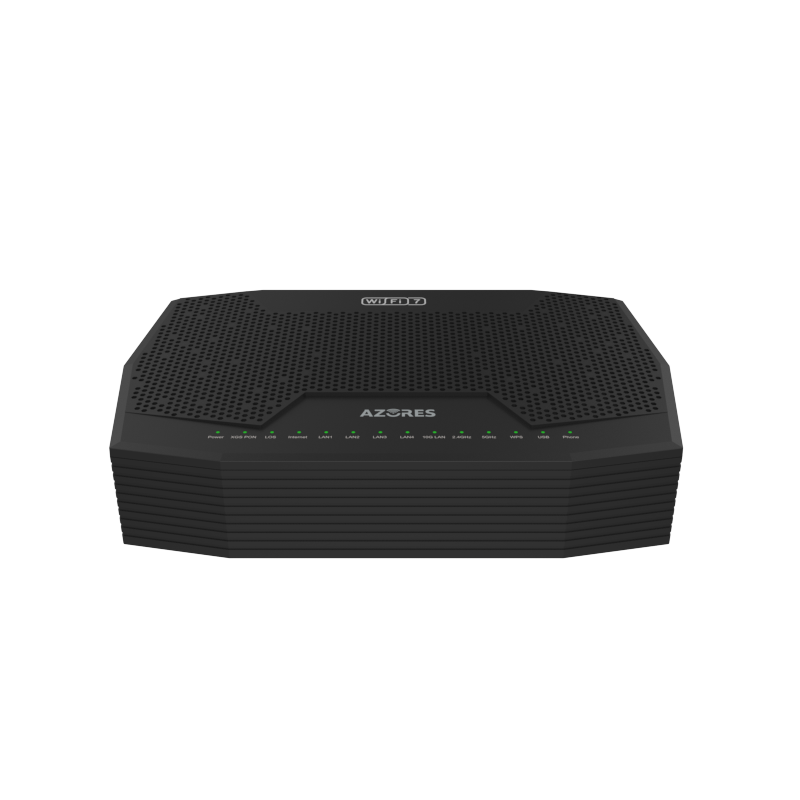

WAG-N51XS / WAG-N51W7
|
XGSPON ONT with BE7200 WiFi7
LAN: 1x 10G + 4x 1G
WiFi7: 1440Mbps / 5760Mbps
4x4 40MHz Wi-Fi 7 (2.4GHz)
4x4 160MHz Wi-Fi 7 (5GHz)
|
|
|

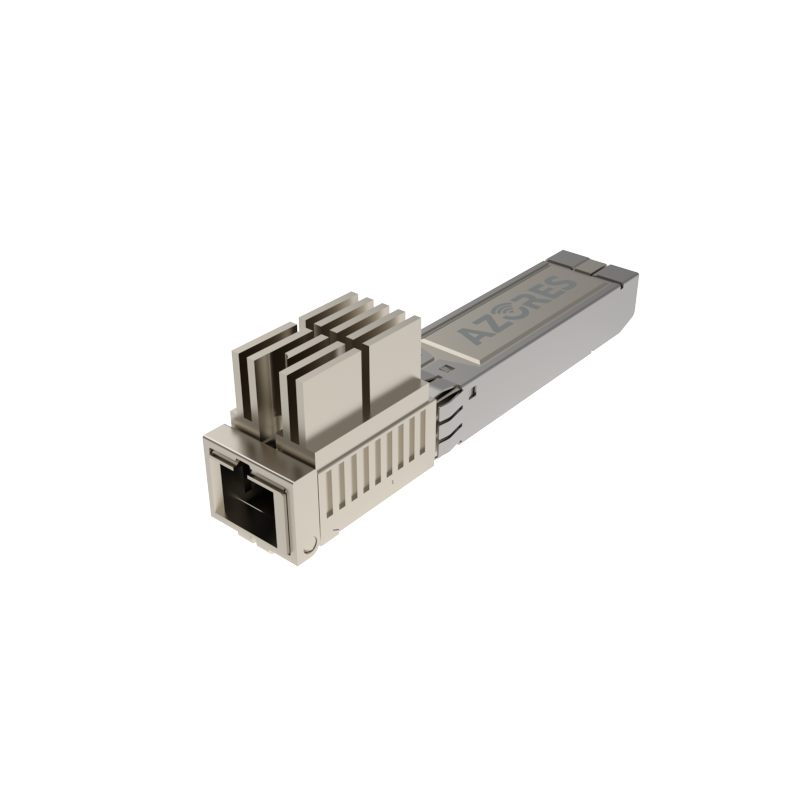

WAS-110 / WAS-W110
|
XGSPON ONT on an SFP+ optic
I-Temp -40 to 85C
|
|
|

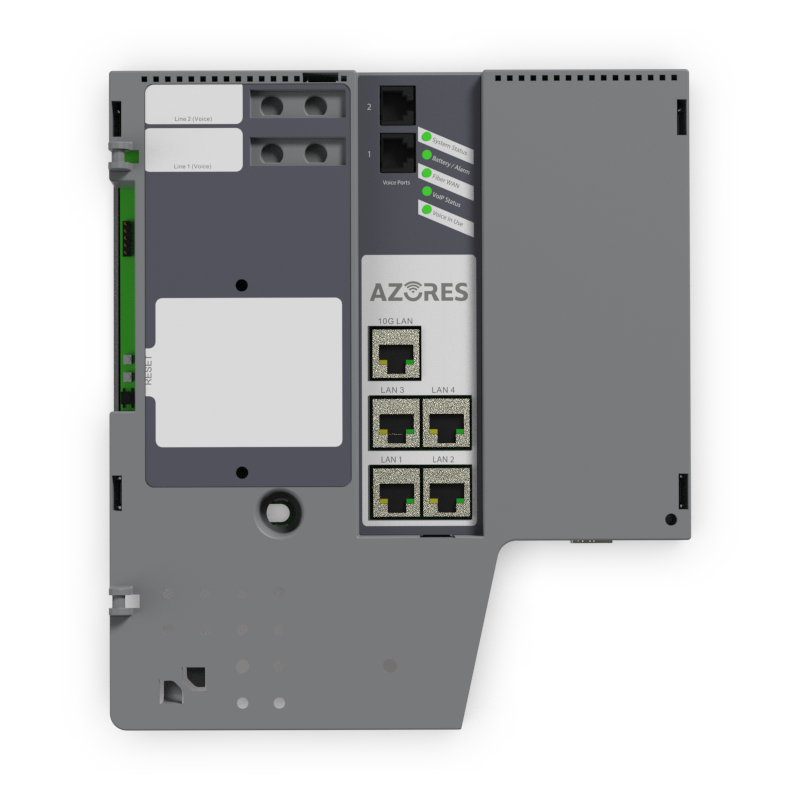

WAG-0F2XS-C
|
XGSPON / GPON / 1/10G Active-E ONT
WAN: 1/10G (SFP+) / LAN: 1x 10G + 4x 1G
2x POTS/FXS
Fits corning standard enclosure
I-Temp -40 to 85C
|
|
|

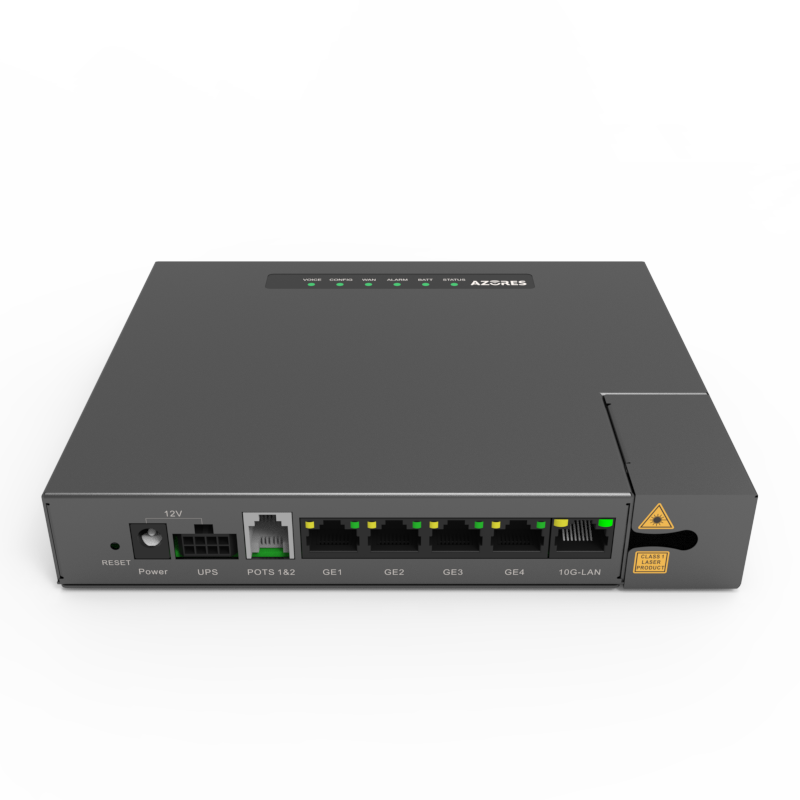

WAG-0F19
|
XGSPON / GPON / 1/10G Active-E ONT
WAN: 1/10G (SFP+) / LAN: 1x 10G + 4x 1G
2x POTS/FXS
E-Temp -20 to 60C
|
|
|

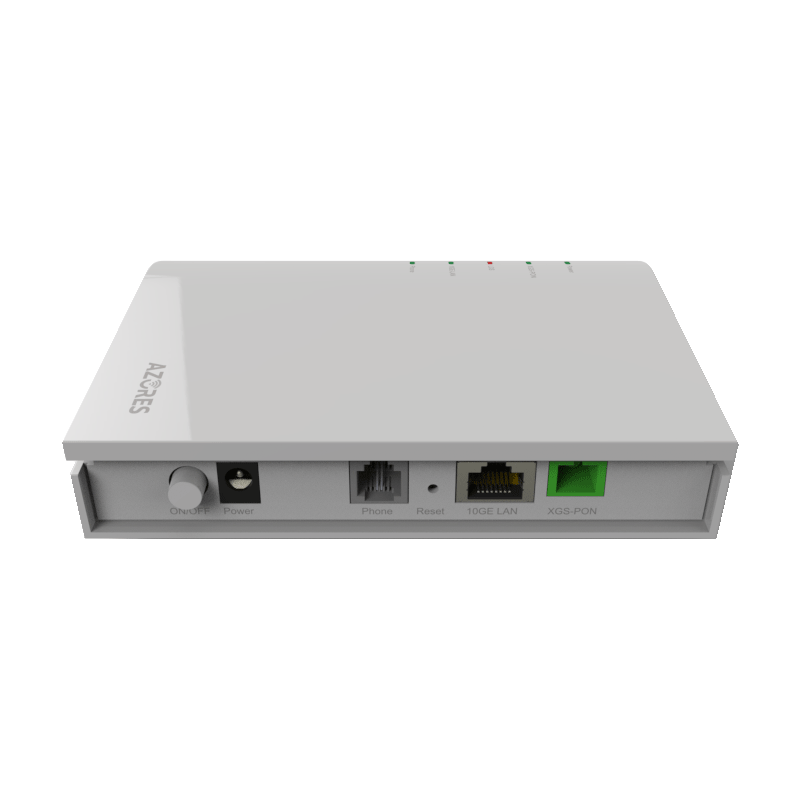

WAG-M11X
|
XGSPON L2 Bridge ONT
LAN: 1x 10G
1x POTS/FXS
|
|
|

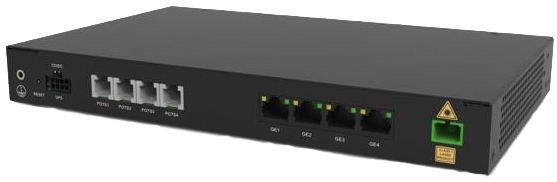

WAG-8FF
|
XGSPON ONT
LAN: 4x 1G
4x POTS/FXS
E-Temp -15 to 60C
|
|
|
